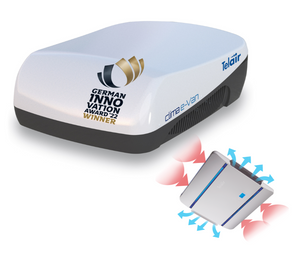

REVERSIBLE E-VAN AIR CONDITIONER - TELECO
Ref : T608010
DESCRIPTION :
THE SMALLEST ROOF AIR CONDITIONER ON THE MARKET
Only 71 cm in length and 23 cm in height
Automatic air conditioners with heat pump
Designed primarily for converted vans, it is the ideal solution for mounting on small roofs, without having to remove the porthole.
Silent, light and easy to install, it can be fixed to the roof not only in the usual porthole hole of 40 x 40 cm but also through a reduced hole of 36 x 36 cm.
Equipped with cutting-edge technology, it has been designed taking into account all new resources to obtain an ecologically clean product.
It works with R32 refrigerant gas which has the lowest global warming potential (GWP 675) compared to all current air conditioners for mobile vehicles, reducing the risk of environmental pollution by 70% compared to gases. used until now.
Two models are available, with different cooling power and each equipped with a heat pump. Cooling, Heating and Automatic functions selectable from the remote control and Timer function.
The CLIMA e-VAN 5400H model has been designed for low consumption and can also be connected to a battery via a pure sine wave inverter of 1500 W minimum (in operation) so that it can be used when the vehicle is running.
The internal diffuser, small in size and with a modern design, is only 4.2 cm thick and this allows it to be installed easily due to its reduced dimensions. Equipped with a light blue multifunction screen and LED indicators that can be turned on and off with the remote control
TECHNICAL DATA :
Technical characteristics |
Climate e-Van 5400H | Climate e-Van 7400H |
Cold power | 5,800 BTU / 1.7 kW | 7,200 BTU / 2.1 kW |
Heating | 5,500 BTU / 1.60 kW | 6,800 BTU / 2 kW |
Fan speeds | 3 + AUTO | 3 + AUTO |
Food | 230 V - 50 Hz | 230 V - 50 Hz |
Fluent | 2.9A | 4.1A |
medium absorbed | 2.8A | 4.0 A |
Starting current | 15A (150ms) | 18A (150ms) |
Power | 660W | 950W |
absorbed | 640W | 920W |
Group required | 2200W | 2200W |
Maximum air flow | 300 m3/h | 300 m3/h |
Weight | 30 kg. | 35 kg. |
Dimensions | 71x61.9x23.2cm | 71x61.9x23.2 cm |
Diffuser height | 4.2x45x45 cm. | 4.2x45x45 cm. |
WiFi option* | YES | YES |
Choice of BLACK color | - | YES |
*WiFi compatible with ICW interface (optional) |
